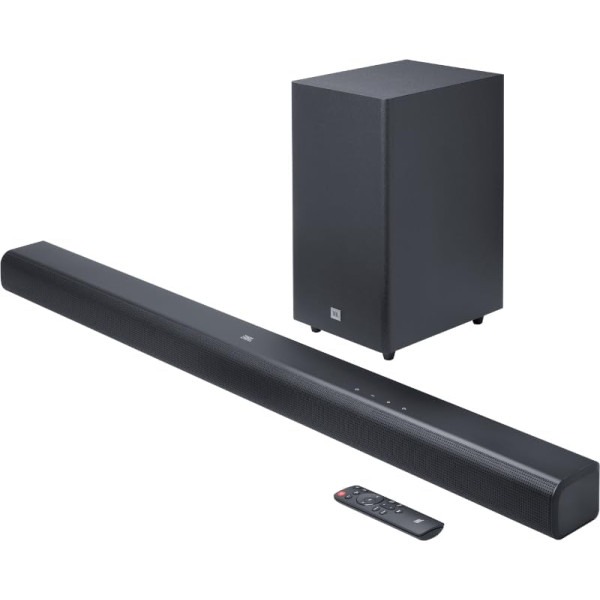

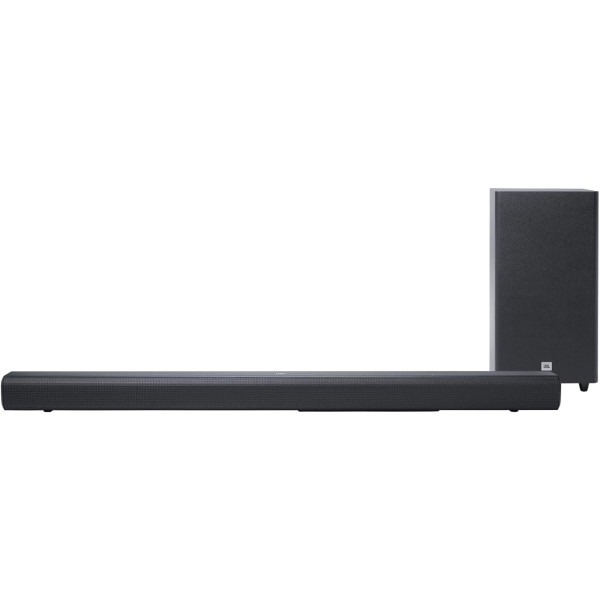

JBL Cinema SB580 3.1 Channel Soundbar

Technical Specifications
General Specifications
 Model: CINEMA SB580
 Sound system: 3.1 channel
 Power supply: 100 - 240V AC, ~ 50/60Hz
 Total speaker power output (Max @THD 1%): 440W
 Soundbar output power (Max @THD 1%): 240W
 Subwoofer output power (Max. @THD 1%): 200W
 Soundbar transducer: 3x (45 x 100) mm racetrack drivers + 3x 13mm tweeters

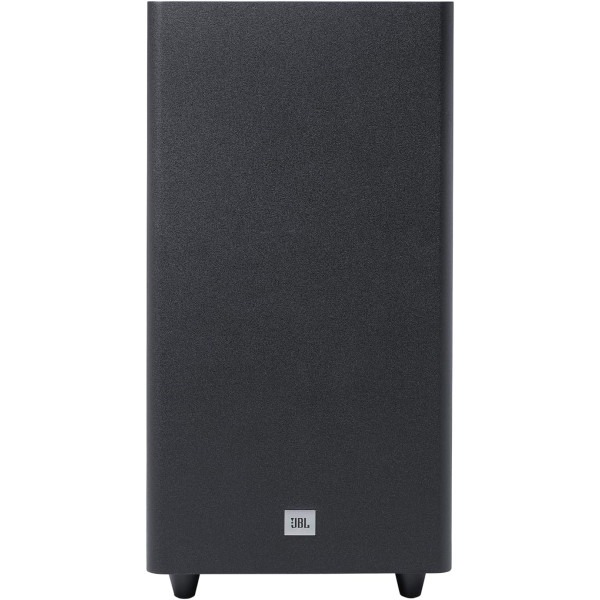

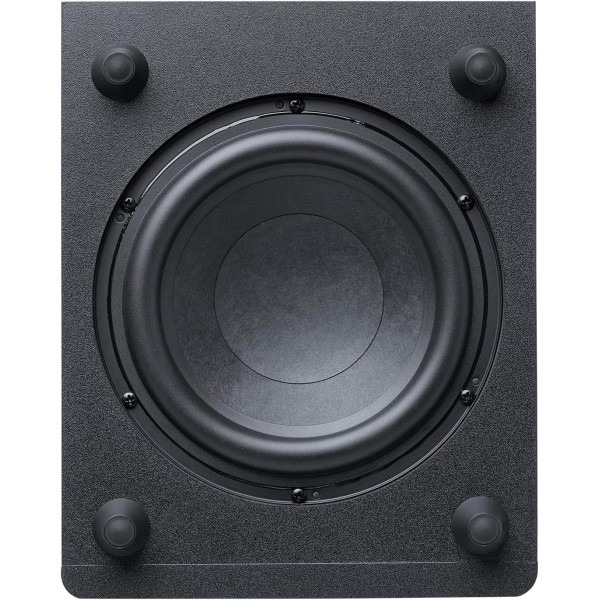

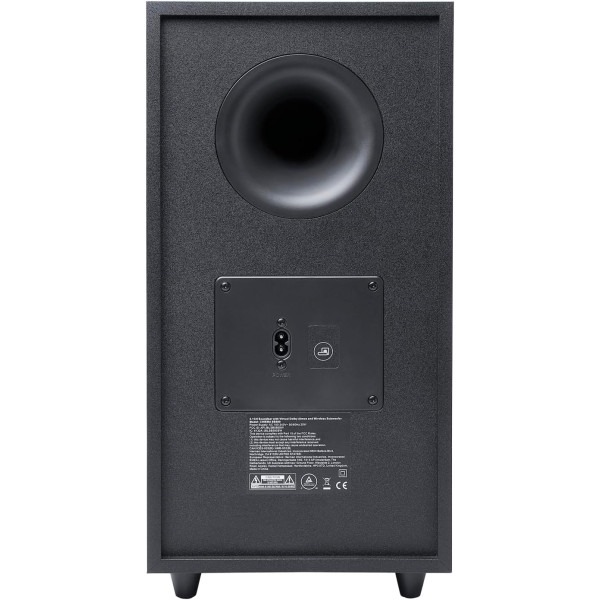

 Subwoofer transducer: 6.5” (165 mm), wireless subwoofer
 Standby power: < 0.5 W
 Operating temperature: 0°C - 45 °C

HDMI Specification
 HDMI video input: 1
 HDMI video output (with Enhanced Audio Return Channel, eARC): 1
 HDMI HDCP version: 2.3

Audio Specification
 Frequency response: 40Hz-20kHz (-10dB)
 Audio inputs: 1 Optical, Bluetooth and USB
(USB playback is available in US version. For other versions, USB is for Service only.)
USB Specification
 USB port: Type A
 USB rating: 5V DC, 0.5A
 Supporting file formats: mp3
 MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3,
MPEG 2.5 Layer 3
 MP3 sampling rate: 16 - 48 kHz
 MP3 bitrate: MPEG 1 Layer 1: 32 kbps - 448 kbps;
MPEG 1 Layer 2: 32 kbps - 384 kbps; MPEG 1 Layer
3: 32 kbps - 320 kbps; MPEG 2/2.5 Layer 1: 32 kbps - 256 kbps; MPEG 2/2.5 Layer 2/3: 8 kbps -160 kbps

Wireless Specification
 Bluetooth version: 5.3
 Bluetooth profile: A2DP 1.3, AVRCP 1.6
 Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
 Bluetooth Max. transmitting power: <10 dBm (EIRP)
 Bluetooth modulation: GFSK, π/4 DQPSK, 8DPSK
 2.4G wireless transmitter frequency range: 2402
2481 MHz
 2.4G wireless transmitter power: <10dBm (EIRP)
 2.4G wireless modulation: GFSK

Dimensions

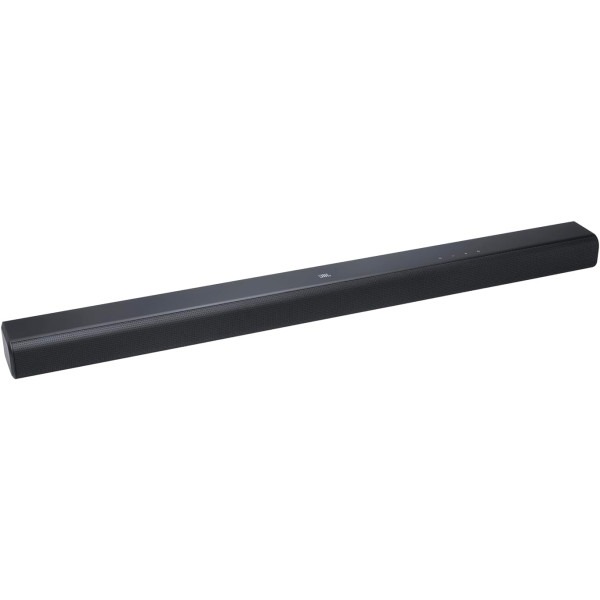

 Soundbar dimensions (W x H x D): 950 x 64 x 80mm / 37.4’’ x 2.5’’ x 3.1’’
 Subwoofer dimensions (W x H x D): 200 x 404 x 250mm / 7.9” x 15.9” x 9.9”
 Soundbar weight: 2.6kg / 5.7 lbs
 Subwoofer weight: 5.7 kg / 12.6 lbs
 Packaging dimensions (W x H x D): 1025 x 235 x 397mm / 40.4” x 9.3” x 15.6”
 Packaging Weight: 10.4 kg / 22.9lbs
