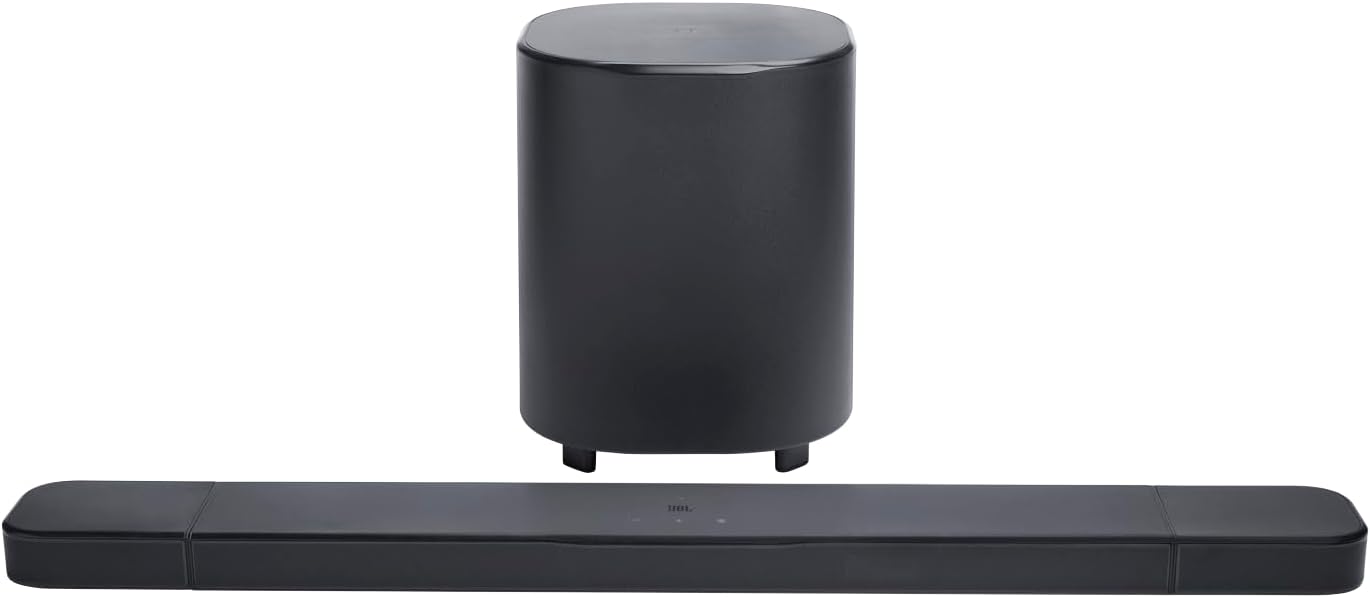

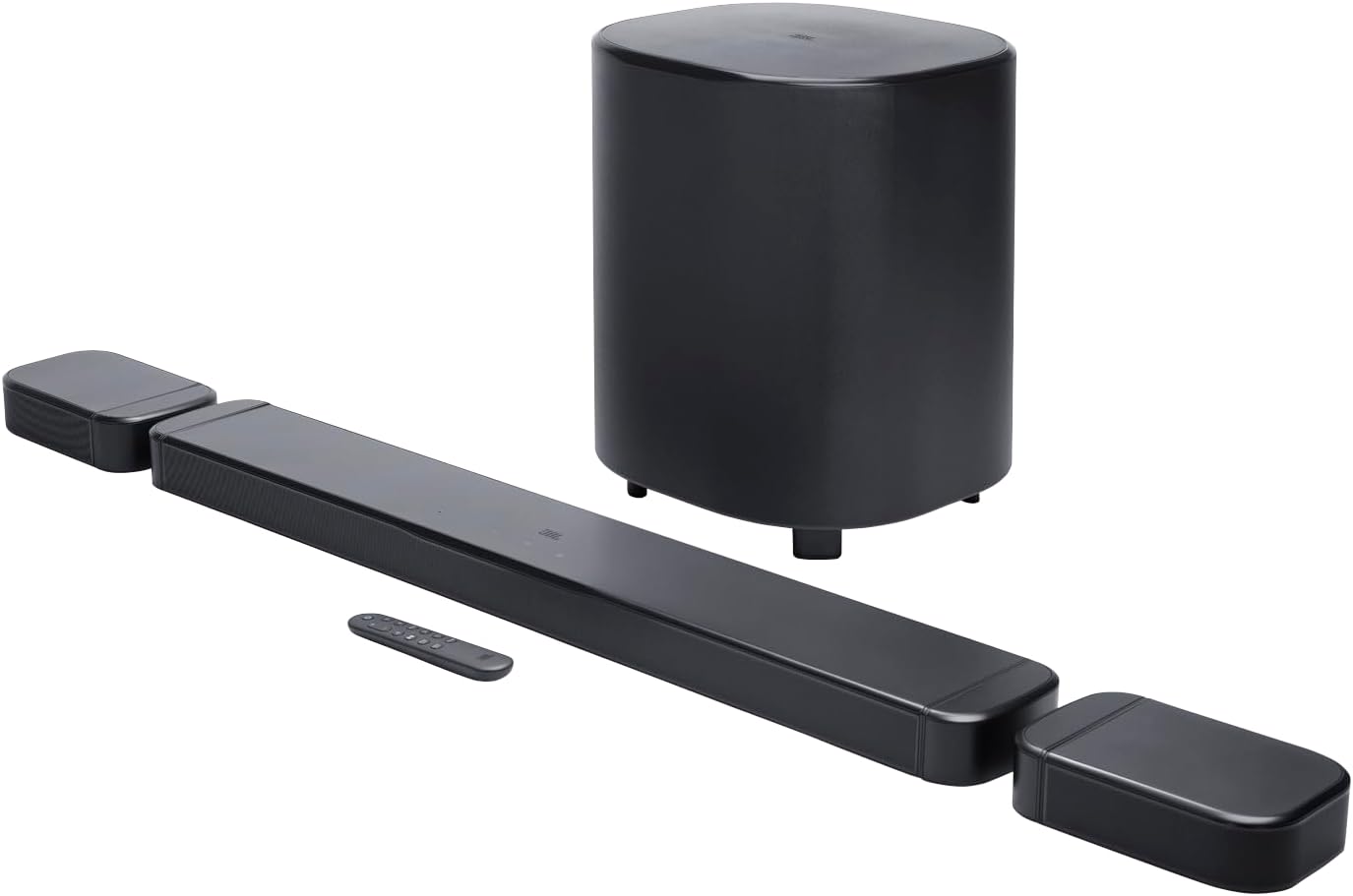

JBL Bar 800 MK2 - Channel Bluetooth Soundbar

General Specifications

Sound system 7.1 channel

Power supply 100 - 240V AC, ~ 50/60Hz

Total speaker power output (Max. @THD 1%) 780W

Soundbar output power (Max. @THD 1%) 400W

Surround speaker output power (Max. @THD 1%) 2x 40W

Subwoofer output power (Max. @THD 1%) 300W

RMS @THD 1% 200W RMS @THD 1% 390W ** RMS @THD 1%

Soundbar transducer 6x (44x80)mm racetrack drivers, 2x 1" (25mm) tweeters

Surround speaker transducer 2x (44x90)mm racetrack drivers

Subwoofer transducer 10” (260mm)

Networked standby power < 2.0 W

Operating temperature 0°C - 45 °C

Lithium battery 3.635V, 3283mAh

Detachable surround speaker playtime up to 10 hours (may vary according to content type and volume level)

Audio Specifications

Frequency response 35Hz - 20kHz (-6dB)

Audio inputs Optical, Bluetooth, USB (USB playback

is available in US version. For other versions, USB is for Service only.)

Dimensions

Total soundbar dimensions (W x H x D)

1163 x 52 x 128mm / 45.8" x 2.0" x 5.0"

Soundbar dimensions (W x H x D)

854 x 52 x 128mm / 35.6" x 2.0" x 5.0"

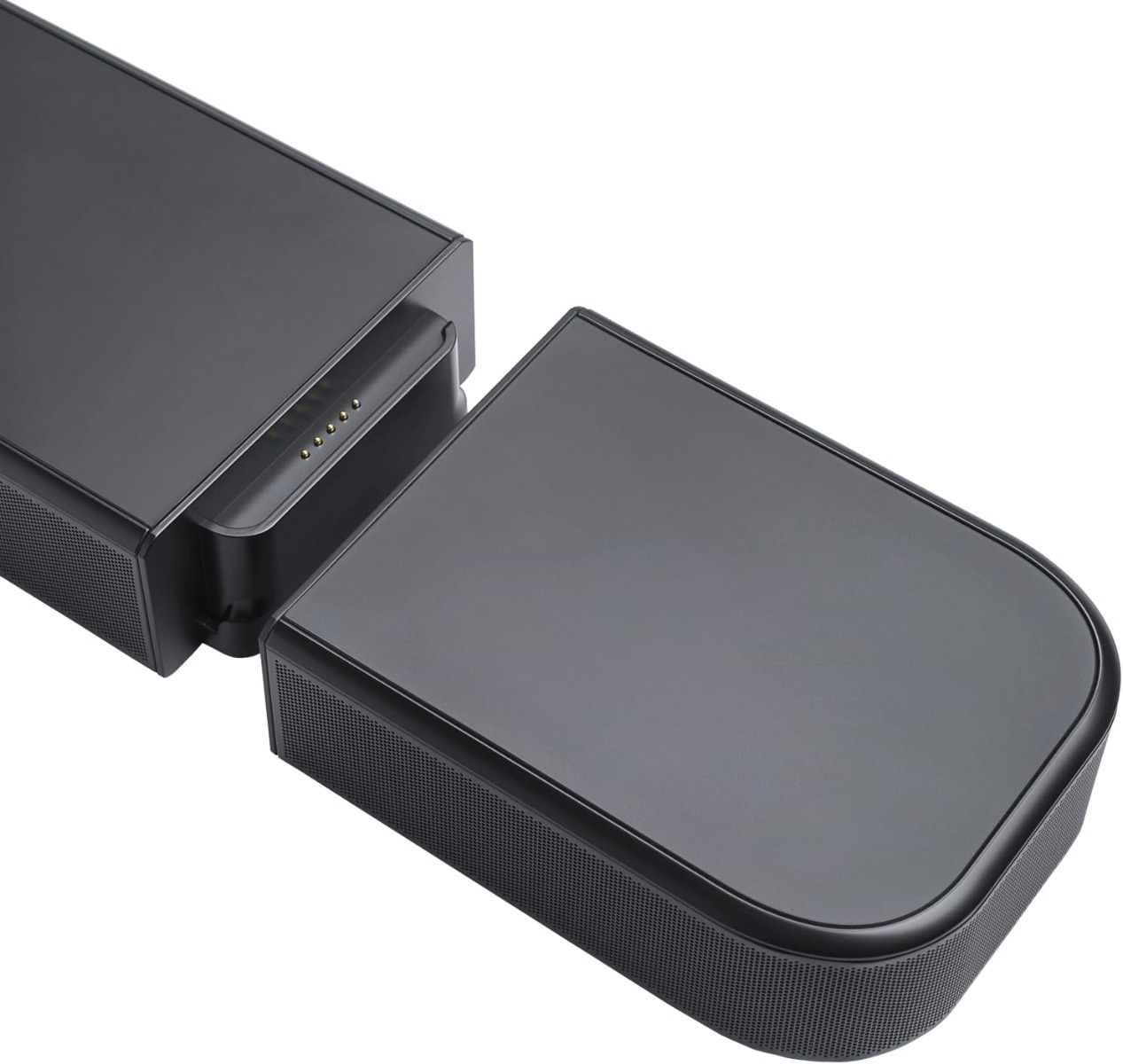

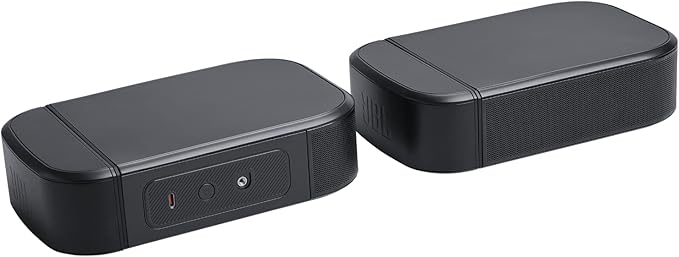

Detachable surround speaker dimensions (each) (W x H x D)

169 x 52 x 128mm / 6.7" x 2.0" x 5.0"

Subwoofer dimensions (W x H x D)

325 x 400 x 325 mm / 12.8" x 15.7" x 12.8"

Soundbar weight

5kg / 11lbs

Detachable surround speaker weight (each)

0.7 kg / 1.6 lbs

Subwoofer weight

8.1kg / 17.8 lbs

Packaging dimensions (W x H x D)

980 x 398 x 495 mm / 38.58" x 15.67" x 19.49"

Packaging Weight

20.8kg / 45.9lbs (EMEA/UK/AU/NZ); 18.08kg / 41.4lbs (Others)

Control and Connection Specifications

USB port

Type A

USB rating

5V DC, 0.5A

Supporting file formats

mp3

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 - 48 kHz

MP3 bitrate

80 - 320 kbps

Bluetooth version

v5.3

Bluetooth profile

A2DP v1.3, AVRCP v1.5

Bluetooth transmitter frequency range

2400 MHz – 2483.5 MHz

Bluetooth transmitter power

<15 dBm (EIRP)

Wi-Fi network

IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range

2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi transmitter power

< 20 dBm (EIRP)

5G Wi-Fi transmitter frequency range

5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power

5.15 - 5.25GHz <23dBm,

5.25 - 5.35GHz & 5.470 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP)

2.4G wireless transmitter frequency range

2406 - 2474MHz

2.4G wireless transmitter power

<10dBm (EIRP)

Note

Band 5.6 - 5.64 GHz will be disabled when shipped to Australia / New Zealand.

Video Specifications

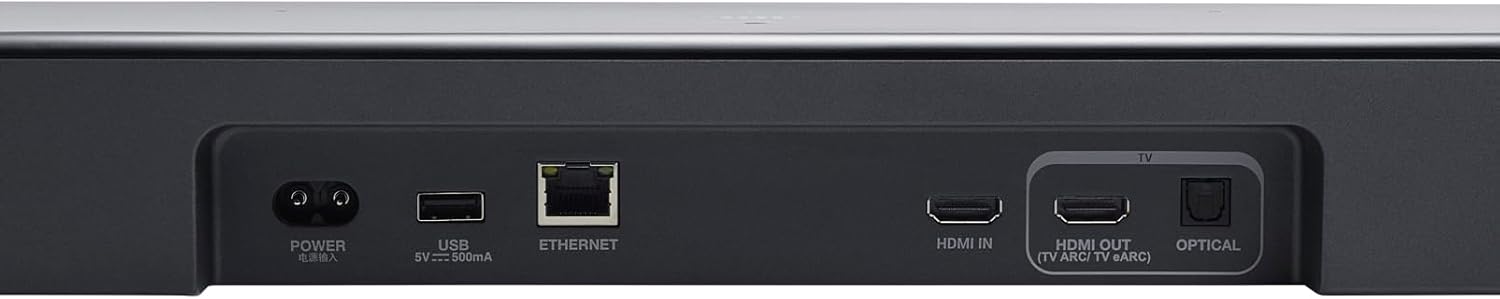

HDMI video input

1

HDMI video output (with Enhanced Audio Return Channel, eARC)

1

HDMI HDCP version

2.3

HDR pass through

HDR10+, Dolby Vision
