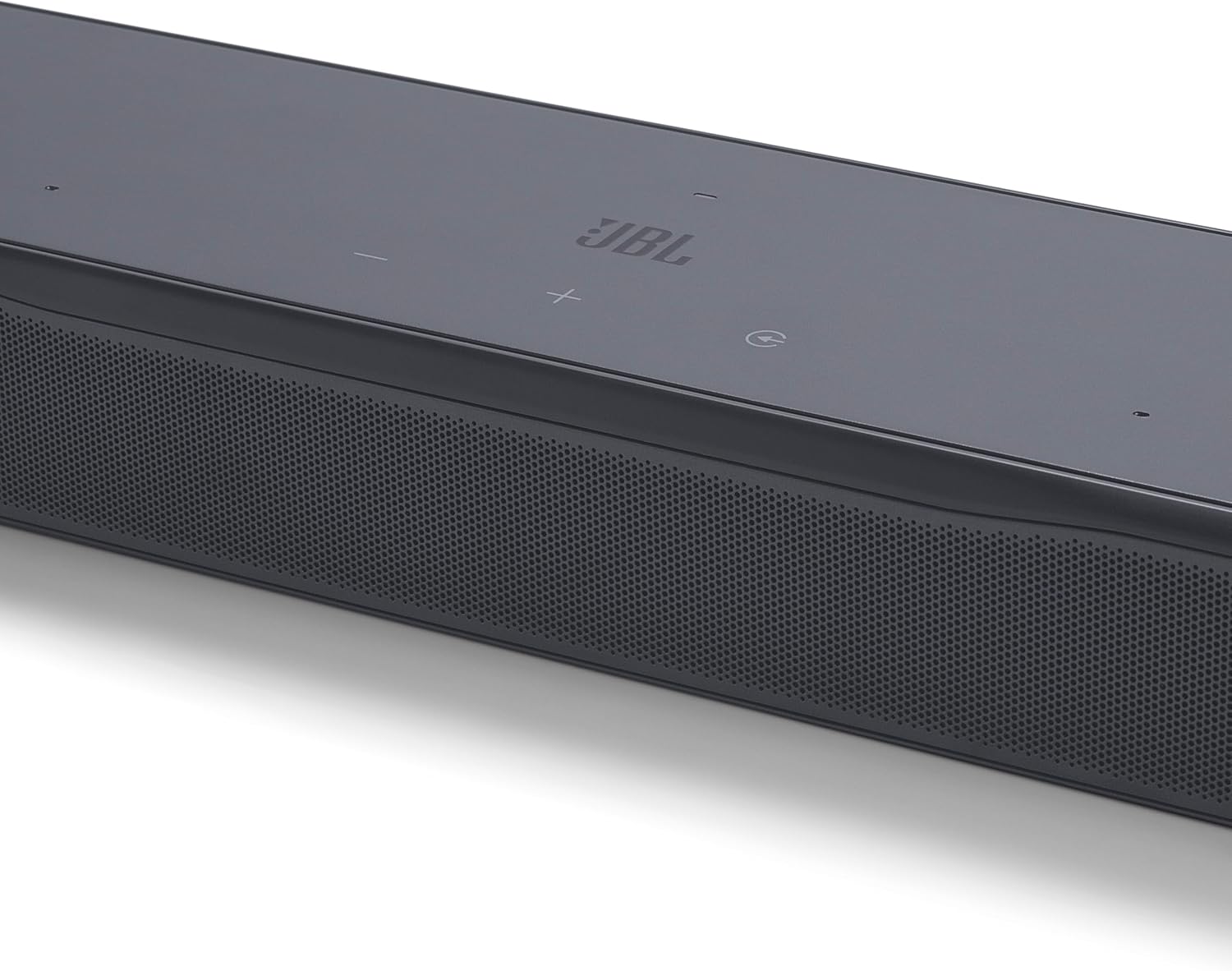

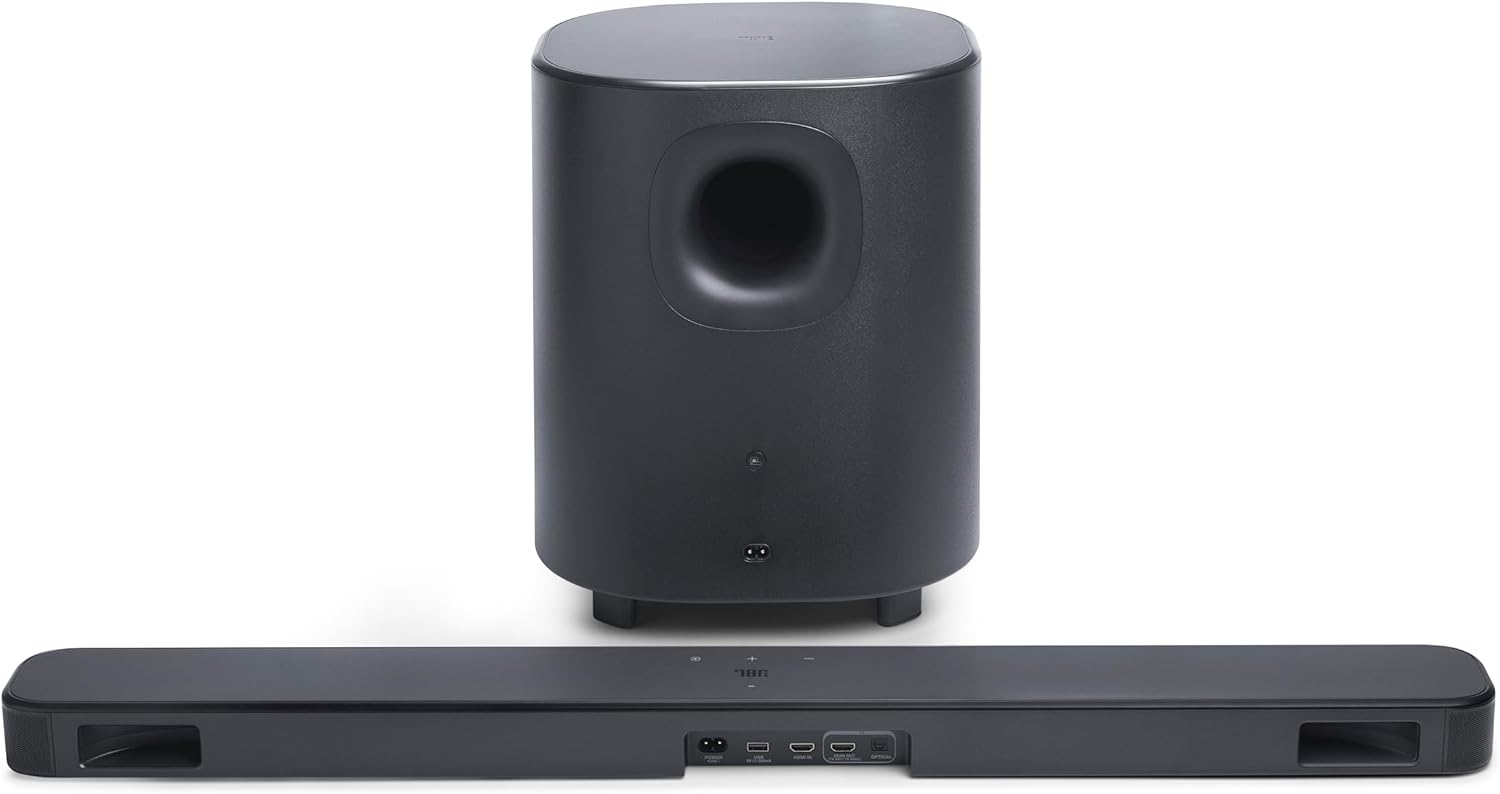

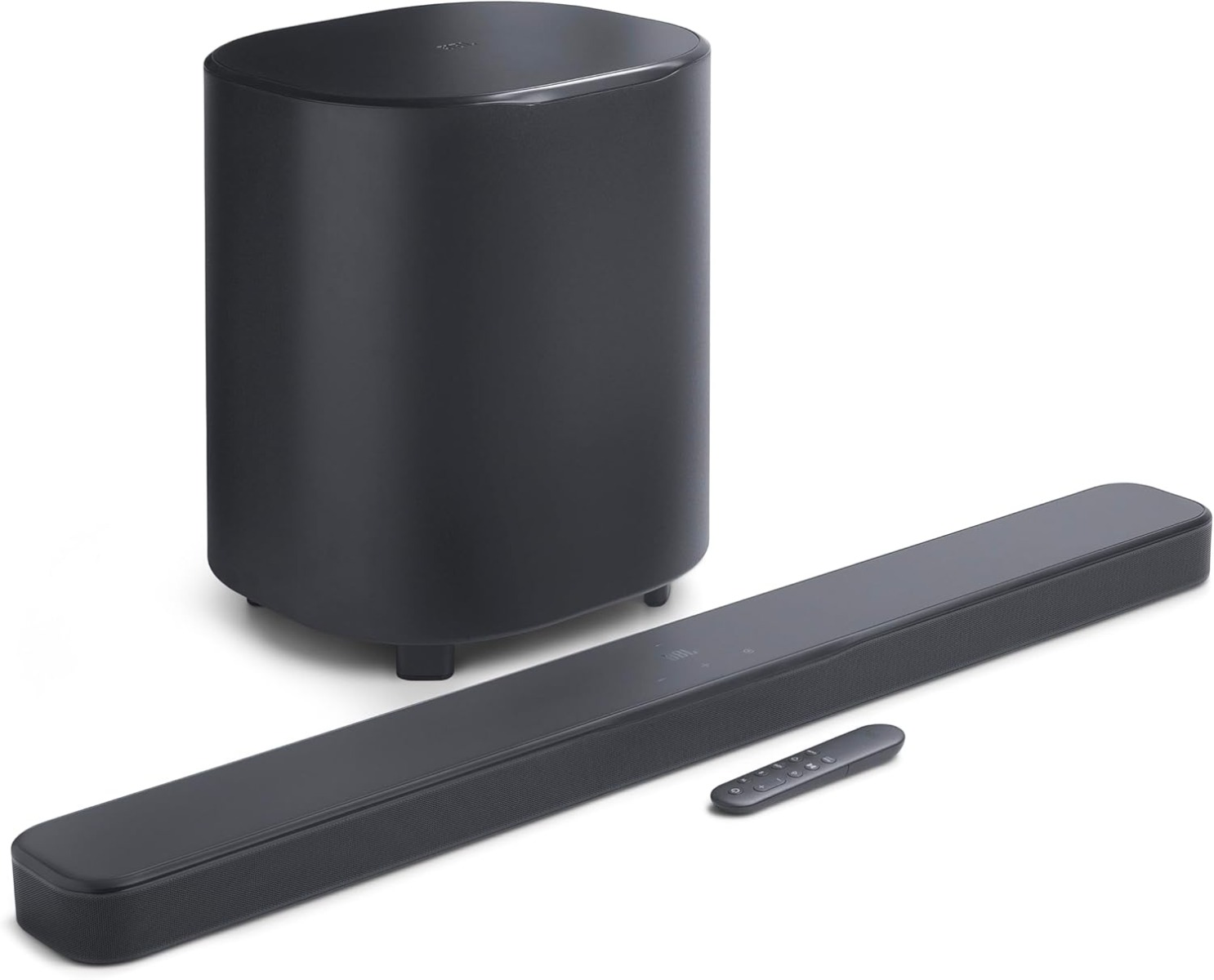

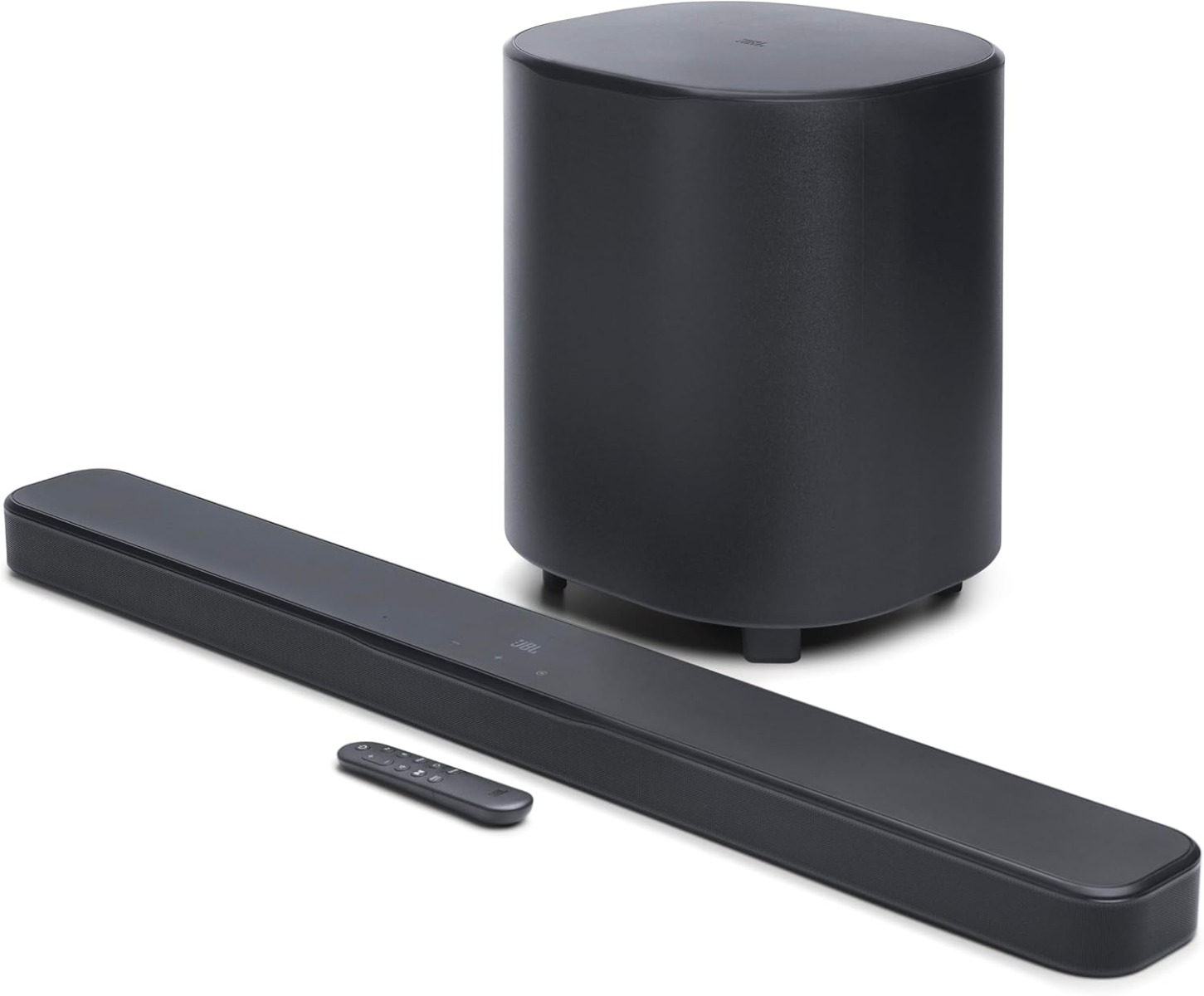

JBL BAR-500-MK2 Soundbar

General Specifications

Model

BAR 500MK2 (soundbar unit) BAR 500MK2 SUB (subwoofer unit)

Sound system

5.1 channel

Power supply

100 - 240V AC, ~ 50/60Hz

Total speaker power output* (Max. @THD 1%)

750W

Soundbar output power** (Max. @THD 1%)

450W

Subwoofer output power*** (Max. @THD 1%)

300W

Soundbar transducer

5x (42x80)mm racetrack drivers, 4x 0.75" (20mm) tweeters

Subwoofer transducer

10” (260mm)

Networked standby power

< 2.0 W

Operating temperature

0°C - 45 °C

Audio Specifications

Frequency response

40Hz - 20kHz (-6dB)

Audio inputs

Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Main soundbar dimensions (W x H x D)

940 x 50.5 x 104 mm / 37" x 2.0" x 4.1"

Subwoofer dimensions (W x H x D)

325 x 400 x 325 mm / 12.8" x 15.7" x 12.8"

Soundbar weight

2.9kg / 6.5lbs

Subwoofer weight

8.1 kg / 17.8 lbs

Packaging dimensions (W x H x D)

1020 x 395 x 490 mm / 40.2" x 15.6" x 19.3"

Packaging Weight

18.0kg / 39.7lbs (EMEA/UK/AU/NZ) 15.9kg / 34.9lbs (Others)

* RMS @THD 1%

* RMS @THD 1% 225W *** RMS @THD 1%

375W ** RMS @THD 1%

Control and Connection Specifications

USB port

Type A

USB rating

5V DC, 0.5A

Supporting file formats

mp3

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 - 48 kHz

MP3 bitrate

80 - 320 kbps

Bluetooth version

v5.3

Bluetooth profile

A2DP v1.3, AVRCP v1.5

Bluetooth transmitter frequency range

2400 MHz – 2483.5 MHz

Bluetooth transmitter power

<15 dBm (EIRP)

Wi-Fi network

IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range

2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi transmitter power

< 20 dBm (EIRP)

5G Wi-Fi transmitter frequency range

5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power

5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.470 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP)

2.4G wireless transmitter frequency range

2406 - 2474MHz

2.4G wireless transmitter power

<10dBm (EIRP)

Note

Band 5.6 - 5.64 GHz will be disabled when shipped to Australia / New Zealand.

Video Specifications

HDMI video input

1

HDMI video output (with Enhanced Audio Return Channel, eARC)

1

HDMI HDCP version

2.3

HDR pass through

HDR10+, Dolby Vision
