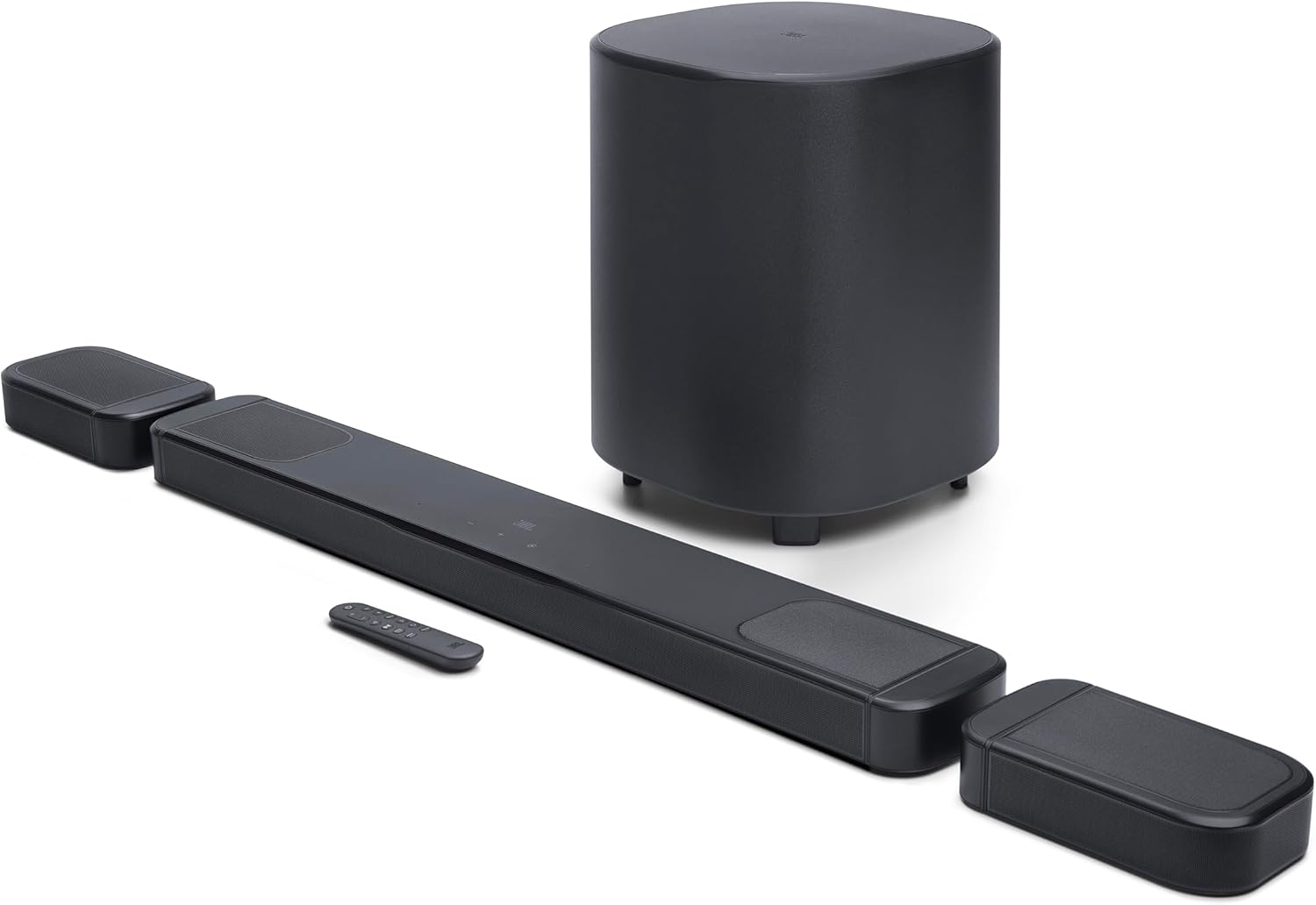

JBL Bar 1000MK2 7.1.4 Channel soundbar

Real spatial sound—the kind that fills your space from floor to ceiling with true Dolby Atmos® and DTS:X height effects—can be yours in seconds. Just pick up the detachable wireless speakers from either end of the JBL BAR 1000MK2 soundbar and place them behind where you're sitting. That's it.

While you're pulled into the center of the action, you'll enjoy deep, punchy bass from a 10" subwoofer and MultiBeam™ 3.0 for the widest, most cinematic soundstage. If you need to step out of the room while you're catching up with your favorite video podcast or enjoying your go-to streaming playlist on your TV, take one of the wireless speakers along and you won't have to miss a thing.

JBL can do this because our speakers are trusted in cinemas, recording studios, and concert halls. And this immersive sound experience works seamlessly with all TV brands. Enjoy the freedom of unbound cinematic sound.

General Specifications

Sound system

7.1.4 channel

Power supply

100 - 240V AC, ~ 50/60Hz

Total speaker power output* (Max. @THD 1%)

960 W RMS

Soundbar output power** (Max. @THD 1%)

500 W

Surround speaker output power*** (Max. @THD 1%)

2 x 80 W

Subwoofer output power**** (Max. @THD 1%)

300 W

Soundbar transducer

6x (44x80)mm racetrack drivers, 2x 1" (25mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers

Surround speaker transducer

2x (44x90)mm racetrack drivers, 2x 2.75" (70mm) up-firing full-range drivers

Subwoofer transducer

10” (260mm)

Networked standby power

< 2.0 W

Operating temperature

0°C - 45 °C

Lithium battery

3.635V, 6600mAh

Detachable surround speaker playtime

up to 10 hours (may vary according to content type and volume level)

Audio Specifications

Frequency response

33Hz - 20kHz (-6dB)

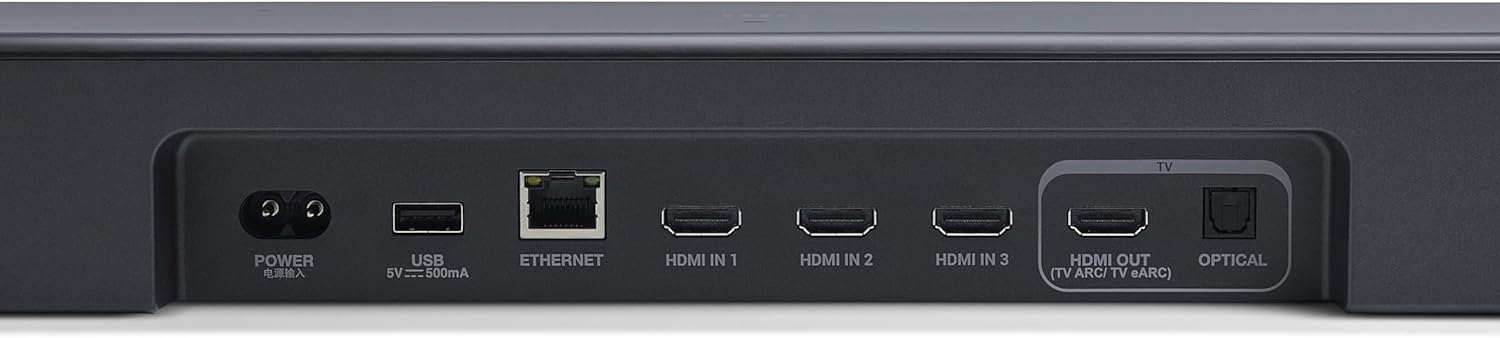

Audio inputs

Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Total soundbar dimensions (W x H x D)

1203 x 52x 128mm / 47.4" x 2.0" x 5.0"

Soundbar dimensions (W x H x D)

854 x 52 x 128mm / 33.6" x 2.0" x 5.0"

Detachable surround speaker dimensions (each) (W x H x D)

189x 52 x 128mm / 7.4" x 2.0" x 5.0"

Subwoofer dimensions (W x H x D):

325 x 400 x 325 mm / 12.8" x 15.7" x 12.8"

Soundbar weight

5.5kg / 12.1 lbs

Detachable surround speaker weight (each)

0.9 kg / 2 lbs

Subwoofer weight

9.1 kg / 20 lbs

Packaging dimensions (W x H x D)

980 x 398 x 495 mm / 38.58" x 15.67" x 19.49"

Packaging Weight

22.6kg / 49.8lbs (EMEA/UK/AU/NZ);19.9kg / 44.4lbs (Others)

Control and Connection Specifications

USB port

Type A

USB rating

5V DC, 0.5A

Supporting file formats

mp3

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 - 48 kHz

MP3 bitrate

80 - 320 kbps

Bluetooth version

v5.3

Bluetooth profile

A2DP v1.3, AVRCP v1.5

Bluetooth transmitter frequency range

2400 MHz – 2483.5 MHz

Bluetooth transmitter power

<15 dBm (EIRP)

Wi-Fi network

IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range

2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi transmitter power

< 20 dBm (EIRP)

5G Wi-Fi transmitter frequency range

5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power

5.15 - 5.25GHz <23dBm,

5.25 - 5.35GHz & 5.470 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP)

2.4G wireless transmitter frequency range

2406 - 2474MHz

2.4G wireless transmitter power

<10dBm (EIRP)

Note

Band 5.6 - 5.64 GHz will be disabled when shipped to Australia / New Zealand.

Video Specifications

HDMI video input

3

HDMI video output (with Enhanced Audio Return Channel, eARC)

1

HDMI HDCP version

2.3

HDR pass through

HDR10+, Dolby Vision
