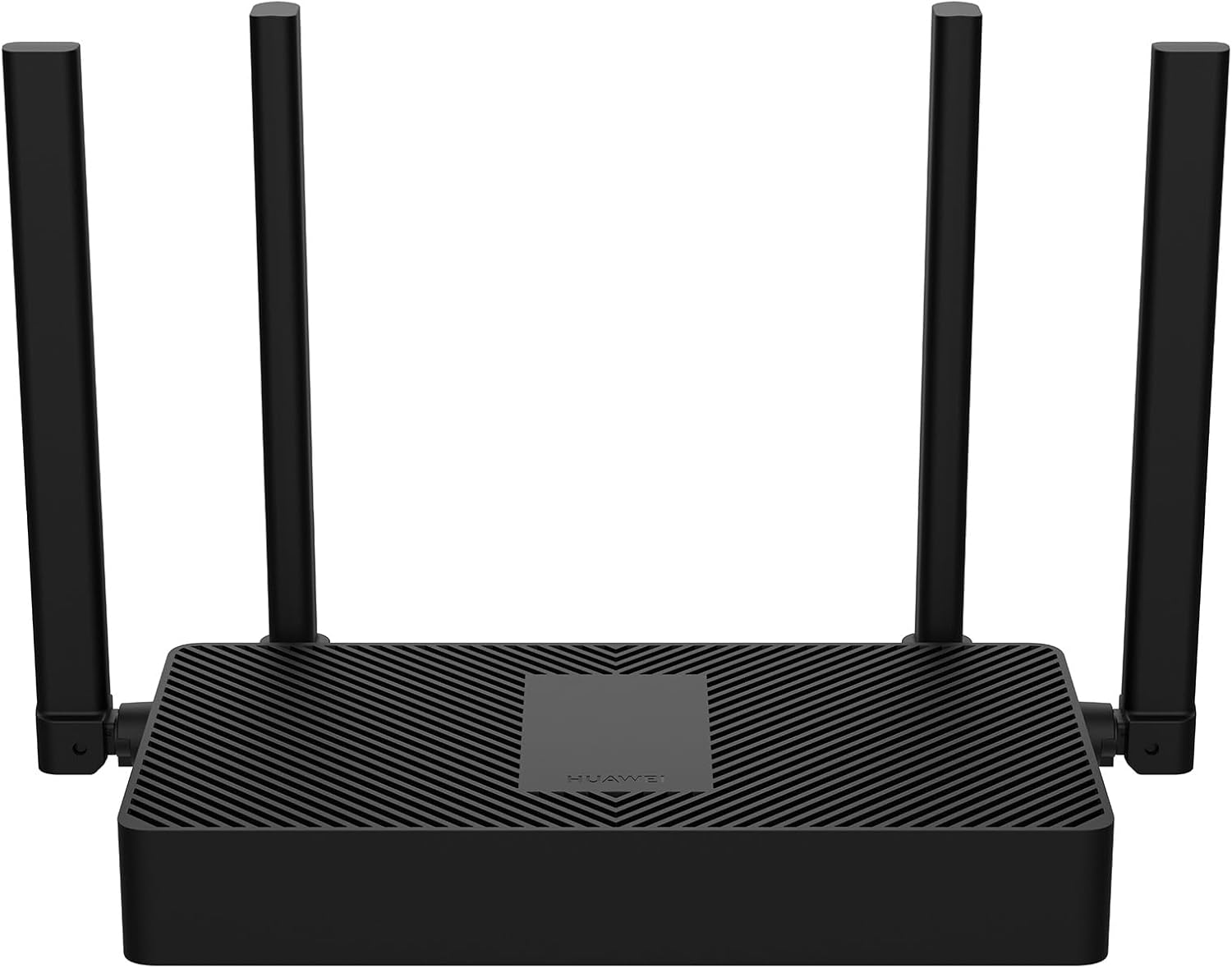

HUAWEI WiFi AX3S - Wi-Fi 6 AX3000 Wireless Gigabit Dual-Band Router

44.5 mm (H) × 225 mm (W) × 147.7 mm (D) (Antenna Folded)

170.7 mm (H) × 225 mm (W) × 152 mm (D) (Antenna Unfolded)

*Actual dimensions may vary depending on configuration, manufacturing process, and measurement method.

About 343 g

*Actual weight may vary depending on configuration, manufacturing process, and measurement method.

Wi-Fi 6

2.4 GHz & 5 GHz

2.4 GHz: 574 Mbps

5 GHz: 2402 Mbps

*Maximum wireless rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual data throughput will vary and be lowered by network, your country’s regulation, and environmental conditions, including network traffic volume, device limitations, and building construction.

2.4 GHz: 2 antennas; 5 GHz: 2 antennas

128 MB RAM + 128 MB ROM

*The available memory capacity may be less because the software occupies some space.

4 × 10/100/1000 Mbps adaptive rate Ethernet ports

*Adaptive WAN and LAN interfaces: the home network cable can be plugged into any network port, allowing for internet access.

WPS/Reset button


1 × Status indicator with two colors (red, green)


Power supply: 12 V DC, 1 A

Power consumption: < 12 W

Input voltage: 100–240 V AC

Input voltage frequency: 50–60 Hz

Supports HUAWEI Mesh+ and 802.11k/v/r protocol, PPPoE/DHCP/static IP internet access, Intelligent detection, blind insertion of network ports,HUAWEI AI Life App Remote Management, Wi-Fi timer switch, Guest Wi-Fi, Wi-Fi anti-brute force cracking, WPA3, Parental control, VPN penetration, DMZ, Virtual server

Supported

HUAWEI HomeSec® security protection: supports Wi-Fi anti-brute force cracking

Supports duration restrictions, interception of malicious websites to protect children's healthy internet access

Supported(WPA2-PSK, WPA/WPA2-PSK, WPA2-PSK/WPA3-SAE, and blocklist/trustlist)

0℃ to 40℃ (32℉–104℉)

5% to 95% RH, non-condensing

–40℃ to +70℃ (–40℉ to +158℉)

5% to 95% RH, non-condensing

1 × Power adapter

1 × Quick Start Guide

1 × Router

1 × Network cable
