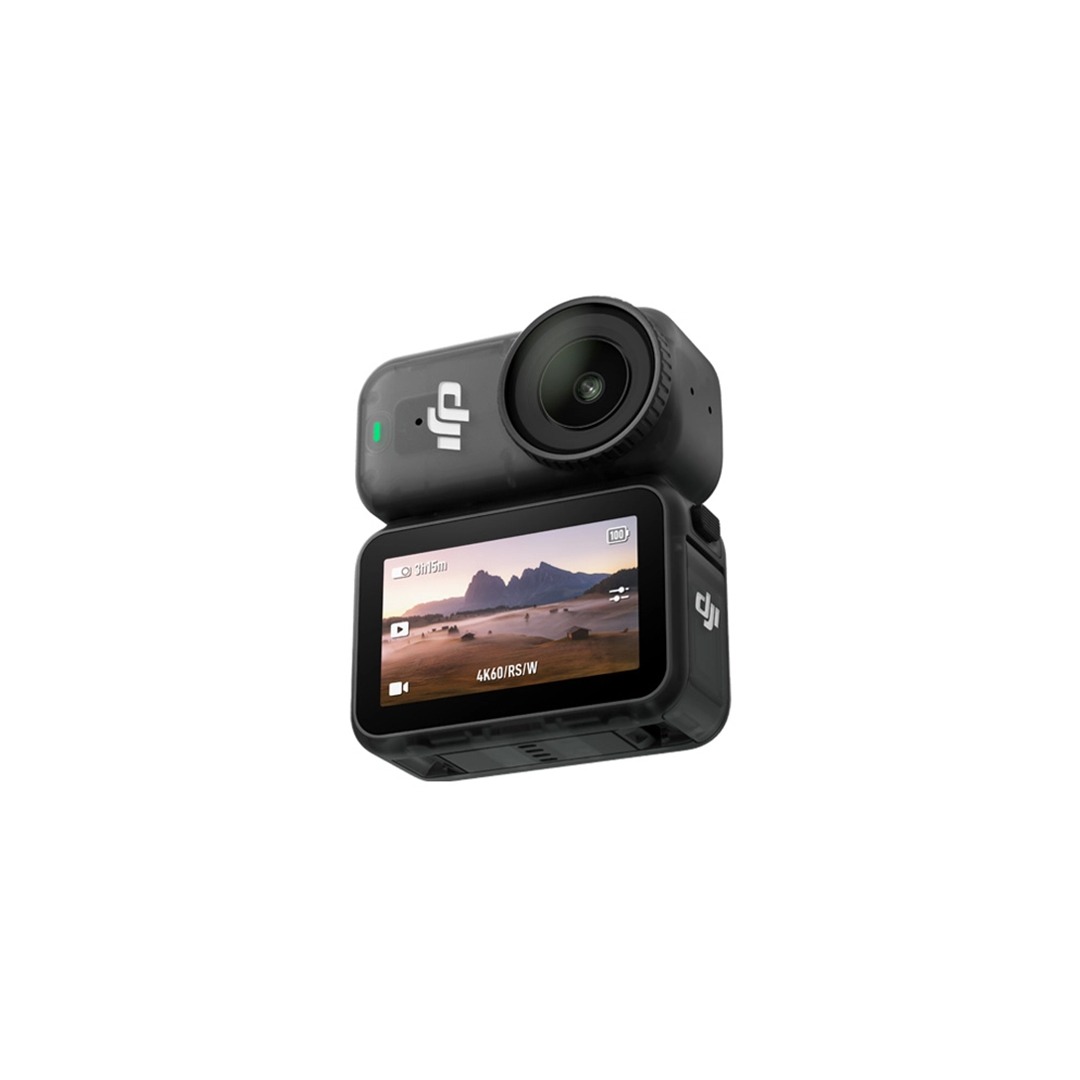

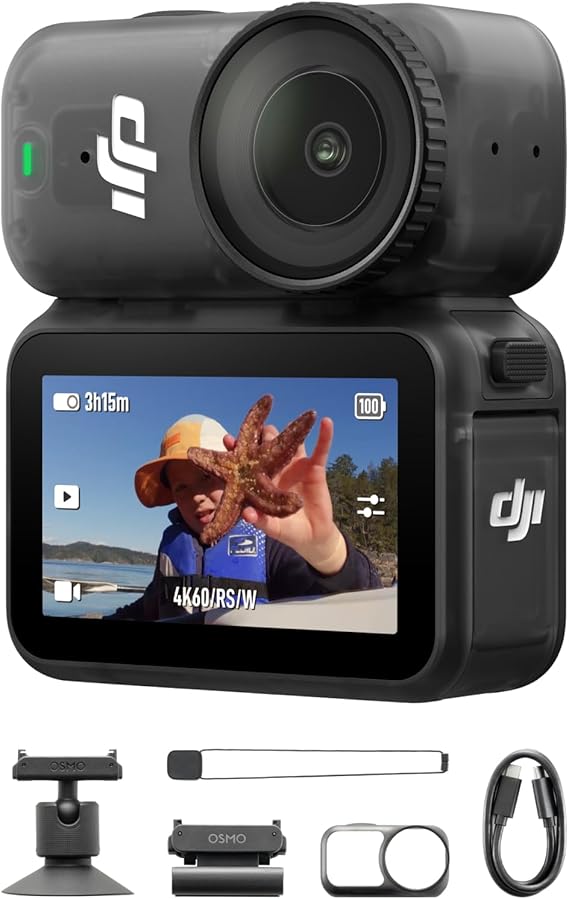

DJI Action Camera Osmo Nano (128GB)

• Dimensions

• Camera: 57.3×29.5×28 mm (L×W×H)
  Multifunctional Vision Dock: 59.1×42.2×22.3 mm (L×W×H)

• Weight

• Camera: 52 g
  Multifunctional Vision Dock: 72 g

• Waterproof

• Camera: up to 10 m
  Camera + Multifunctional Vision Dock: IPX4 splash resistance

  ^{Before use, tighten the Glass Lens Cover. It is not recommended to use the camera body only for long-term underwater shooting or in environments with high water impact pressure. Do not use the camera in hot springs or extreme underwater environments, or let it come into contact with corrosive or unknown liquids.}

• Number of Microphones

• 2

• Touchscreen

• Dimensions: 1.96 inches, 326 ppi
  Resolution: 314×556
  Maximum Brightness (typical): 800 cd/㎡

• Supported SD Cards

• microSD (up to 1 TB)

• Recommended microSD Cards

• Recommended Models:
  Lexar SILVER PLUS 64GB U3 A2 V30 microSDXC
  Lexar SILVER PLUS 512GB U3 A2 V30 microSDXC
  Lexar SILVER PLUS 1TB U3 A2 V30 microSDXC
  Kingston Canvas Go! Plus 64GB U3 A2 V30 microSDXC
  Kingston Canvas Go! Plus 128GB U3 A2 V30 microSDXC
  Kingston Canvas Go! Plus 256GB U3 A2 V30 microSDXC
  Kingston Canvas Go! Plus 512GB U3 A2 V30 microSDXC
  Kingston Canvas Go! Plus 1TB U3 A2 V30 microSDXC

Camera

• Sensor

• 1/1.3″ CMOS

• Lens

• FOV: 143°
  Aperture: f/2.8
  Focus Range: 0.35 m to ∞

• ISO Range

• Photo: 100-25600
  Video: 100-25600

• Electronic Shutter Speed

• Photo: 1/8000-30 s
  Video: 1/8000 s to the limit of frames per second

• Max Photo Resolution

• 6880 × 5160

• Still Photography Modes

• Single: Approx. 35 MP
  Countdown: Off/0.5/1/2/3/5/10 s
  Burst: Up to 30 images/3 s

• Video

• 4K (4:3): 3840 × 2880@24/25/30/48/50fps
  4K (16:9): 3840 × 2160@24/25/30/48/50/60fps
  2.7K (4:3): 2688 × 2016@24/25/30/48/50/60fps
  2.7K (16:9): 2688 × 1512@24/25/30/48/50/60fps
  1080p (4:3): 1920 × 1440@24/25/30/48/50/60fps
  1080p (16:9): 1920 × 1080@24/25/30/48/50/60fps

• Slow Motion

• 4K: 4x (120fps)
  2.7K: 4x (120fps)
  1080p: 8x (240fps), 4x (120fps)

• Hyperlapse

• 4K/2.7K/1080p@25/30fps: Auto/×2/×5/×10/×15/×30

• Timelapse

• 4K/2.7K/1080p@25/30fps
  Intervals: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40 s, 1/2/5/30/60 min
  Duration: 5/10/20/30 min, 1/2/3/5 hours, ∞

• Stabilization

• EIS:
  RockSteady 3.0
  HorizonBalancing

  ^{EIS is not supported in Slow Motion and Timelapse modes. HorizonBalancing is only available when the video resolution is 1080p (16:9), 2.7K (16:9), or 4K (16:9) with a frame rate of 60fps or below.}

• Pre-Rec

• Pre-Recording Duration: 5/10/15/30 s, 1/2/5 min

• Max Video Bitrate

• 120 Mbps

• Supported File System

• exFAT

• Photo Format

• JPEG/RAW

• Video Format

• MP4 (HEVC)

• Built-in Storage Capacity

• 64GB Version: 48GB available storage
  128GB Version: 107.6GB available storage

  ^{The storage capacity can be expanded by inserting a microSD card.}

• Audio Recording

• 48 kHz 16-bit; AAC

Battery

• Type

• Camera: Li-ion 1S
  Multifunctional Vision Dock: Li-ion 1S

• Capacity

• Camera: 530 mAh
  Multifunctional Vision Dock: 1300 mAh

• Energy

• Camera: 2.041 Wh
  Multifunctional Vision Dock: 5.031 Wh

• Voltage

• Camera: 3.85 V
  Multifunctional Vision Dock: 3.87 V

• Operating Temperature

• -20° to 45° C (-4° to 113° F)

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Operating Time

• Camera: 90 min*
  Camera + Multifunctional Vision Dock: 200 min*

  ^{* Tested at 25° C (77° F) room temperature while recording 1080p/24fps (16:9) video, with RockSteady stabilization enabled, Wi-Fi disabled, and the screen turned off. Actual operating time may vary based on device settings, usage, and environmental factors. Data was collected in a controlled environment and should be taken as reference only.}

  Endurance Mode: Continuous recording at 4K/60fps for over 50 minutes**

  ^{** Measured at 25° C (77° F) room temperature with RockSteady stabilization enabled, Wi-Fi disabled, and the screen turned off.}

Connection

• Wi-Fi Operating Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Wi-Fi Protocol

• Wi-Fi 6.0
  802.11 a/b/g/n/ac/ax

• Wi-Fi Transmitter Power (EIRP)

• 2.4 GHz: < 23 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
  5.8 GHz: < 23 dBm (FCC/SRRC), < 14 dBm (CE)

• Bluetooth Operating Frequency

• 2.400-2.4835 GHz

• Bluetooth Transmitter Power (EIRP)

• Camera: < 13 dBm
  Multifunctional Vision Dock: < 10 dBm

• Bluetooth Protocol

• Camera: BLE 5.1
  Multifunctional Vision Dock: BLE 5.4

• Transmission Distance

• Wireless transmission range between the Multifunctional Vision Dock and the camera: 10 m*
